The SECO5007 Information PDF consists of three pages.
For detailed technical information on our SECO5007 product line, you can either view the engineering drawings online or download a PDF of them.

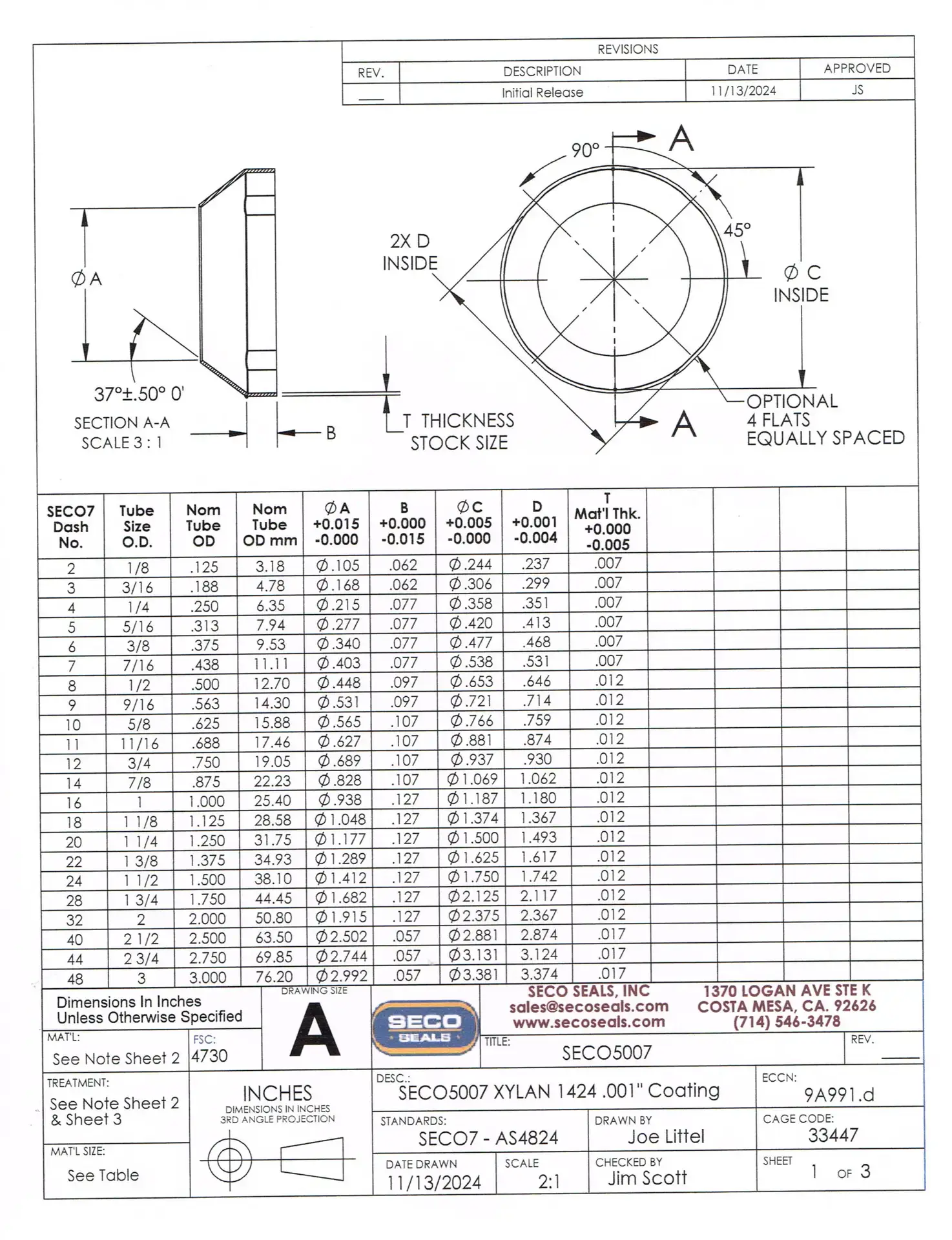

Page 1 – Overview
Page 1 of the SECO5007 information PDF provides complete sizing information and tolerances for SECO5007 37-Degree Flared Tube Fitting Conical Seals.

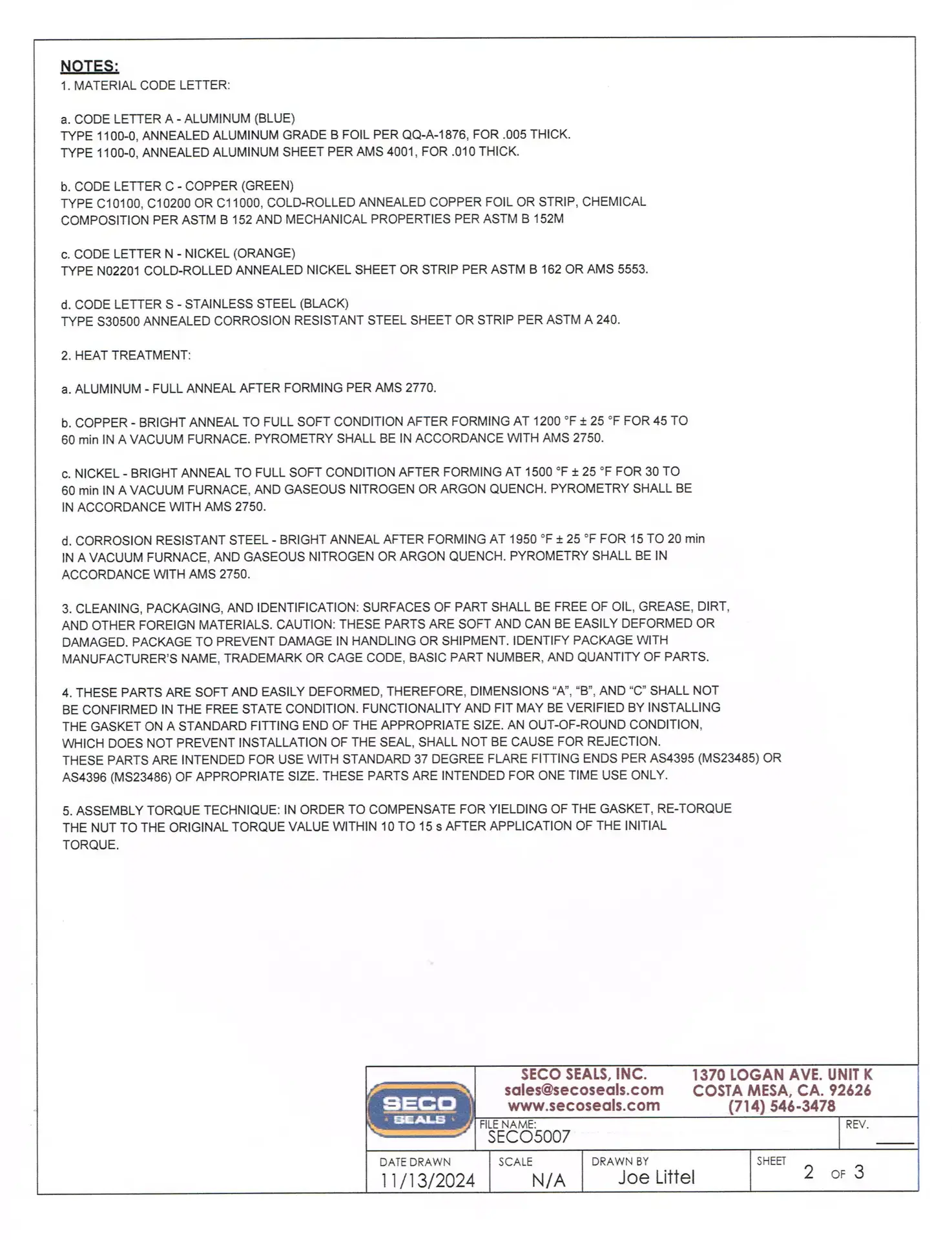

Page 2 – Overview
Page 2 of the information PDF has Notes 1 through 5: 1) Material Code Letter; 2) Heat Treatment; 3) Cleaning, Packaging,and Identification; 4) Functionality and Fit Verification; and 5) Assembly Torque Technique for SECO5007 37-Degree Flared Tube Fitting Conical Seals.

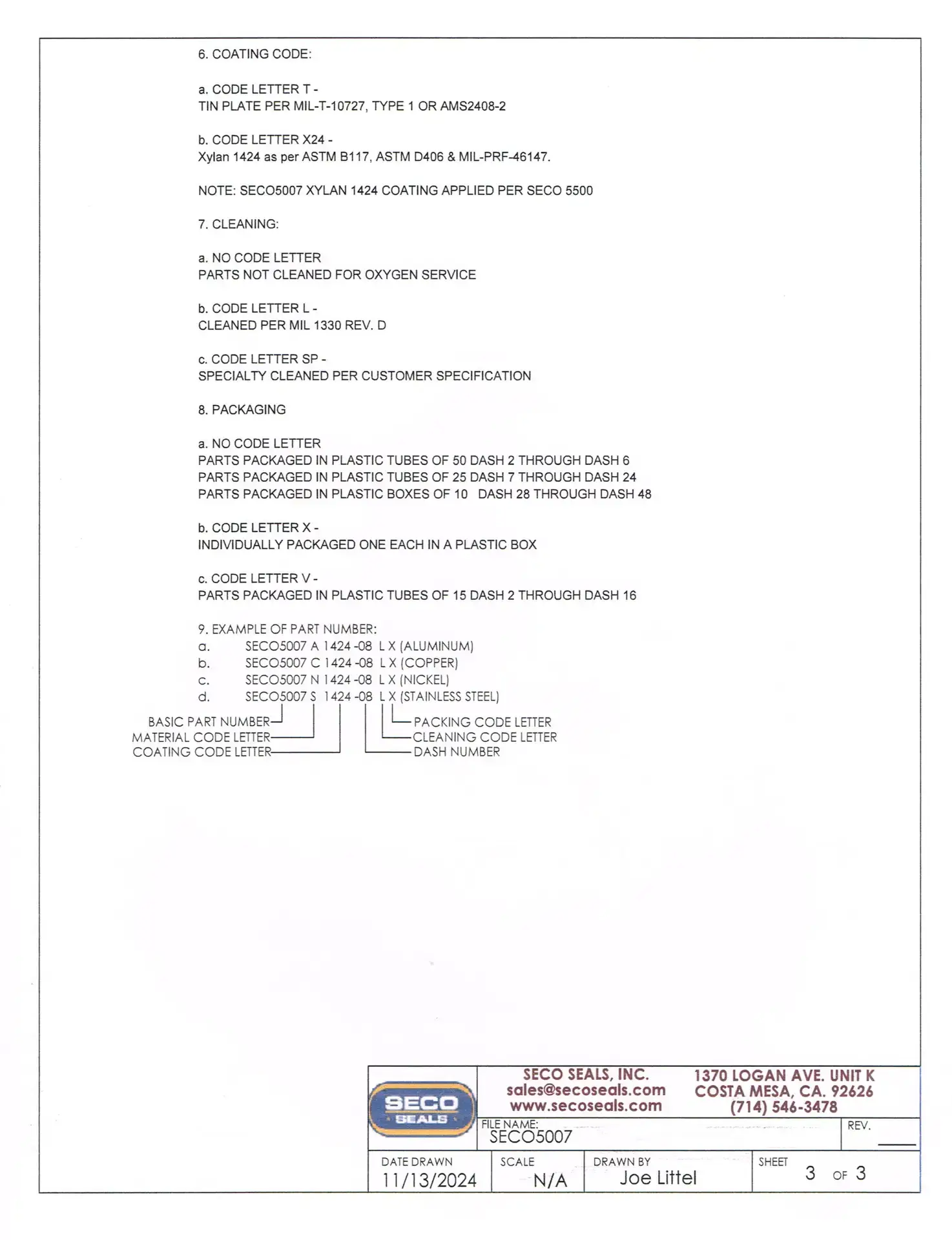

Page 3 – Overview
Page 3 of the information PDF has Notes 6 through 9: 6) Coating Code; 7) Cleaning; 8) Packaging; and 9) Example of Part Number for SECO5007 37-Degree Flared Tube Fitting Conical Seals.
