Torque vs. Load Study for Flared Tube Fittings
Tools and Design Standards
Weight Study Chart
Wyle Laboratories Test Report
Recommended Assembly Instructions
VOI-SHAN – SCOTT CONNECTOR SYSTEM Customer Drawings
Conical Seal into the Boss Design
VOI-SHAN reports on SCOTT CONNECTOR SYSTEM
Development of Flared Fittings for Helium Lines
SECO SEALS Historical Engineering Documents
sales@secoseals.com
1370 Logan Ave, Ste K, Costa Mesa, CA 92626
+17145463478

SECO7 Torque Values

Torque Tools

SECO Seals recommends utilizing torque tools when installing SECO7 flare savers. Click on the button and see the torque tools we use.

SECO7 Torque Values Engineering Document

The SECO SEALS “SECO7 Torque Specs” PDF consists of seven pages.

For detailed technical information on SECO7 torque values, you can either view the engineering drawing by clicking on an image below or download the “SECO7 Torque Specs” PDF.

Page 1– SECO7 Torque Spec Overview

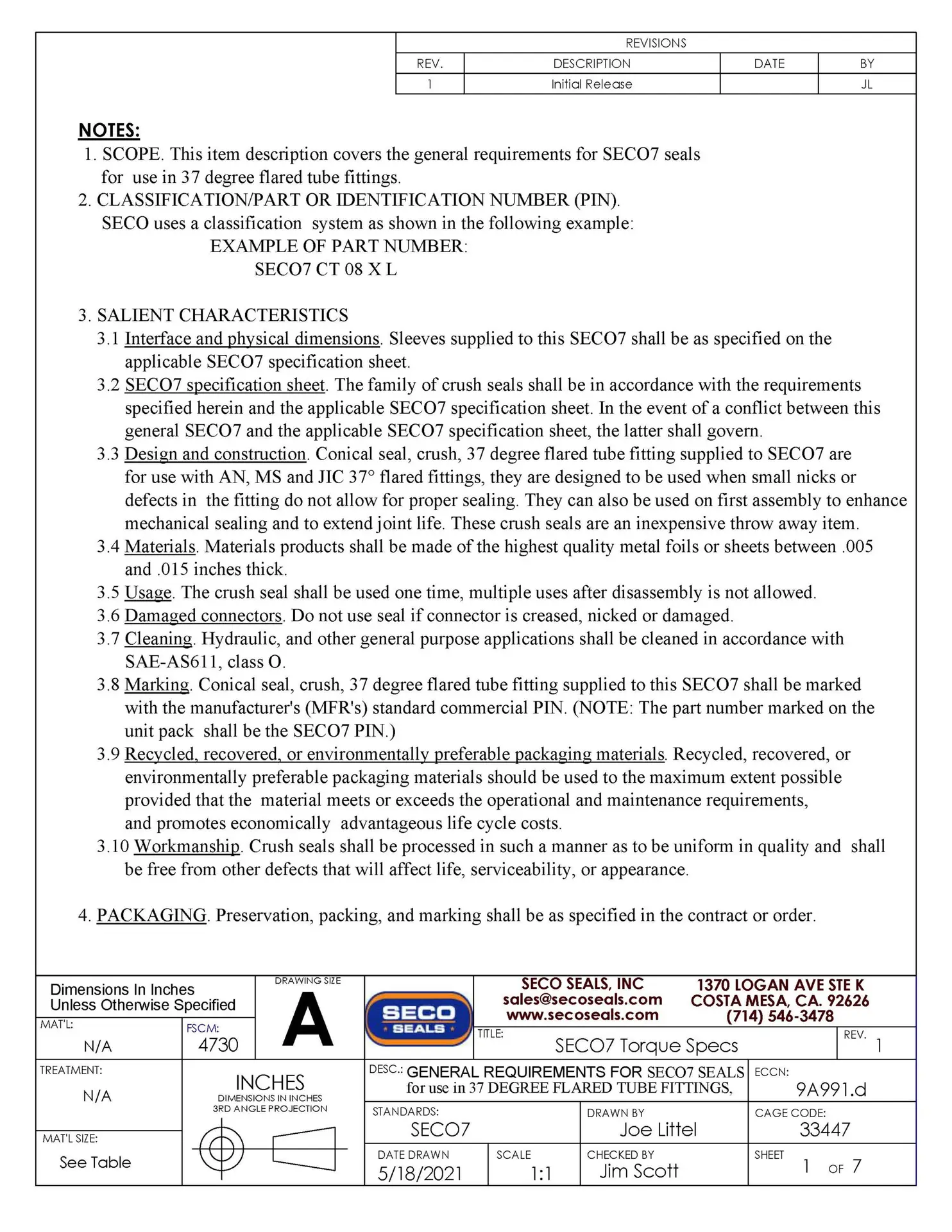

Page 1 of the “SECO7 Torque Specs” engineering document contains the notes and describing the “SCOPE“, “CLASSIFICATION/PART or IDENTIFICATION NUMBER (PIN)“, the “SALIENT CHARACTERISTICS“, and “PACKAGING” information.

Page 2– SECO7 Torque Spec Overview

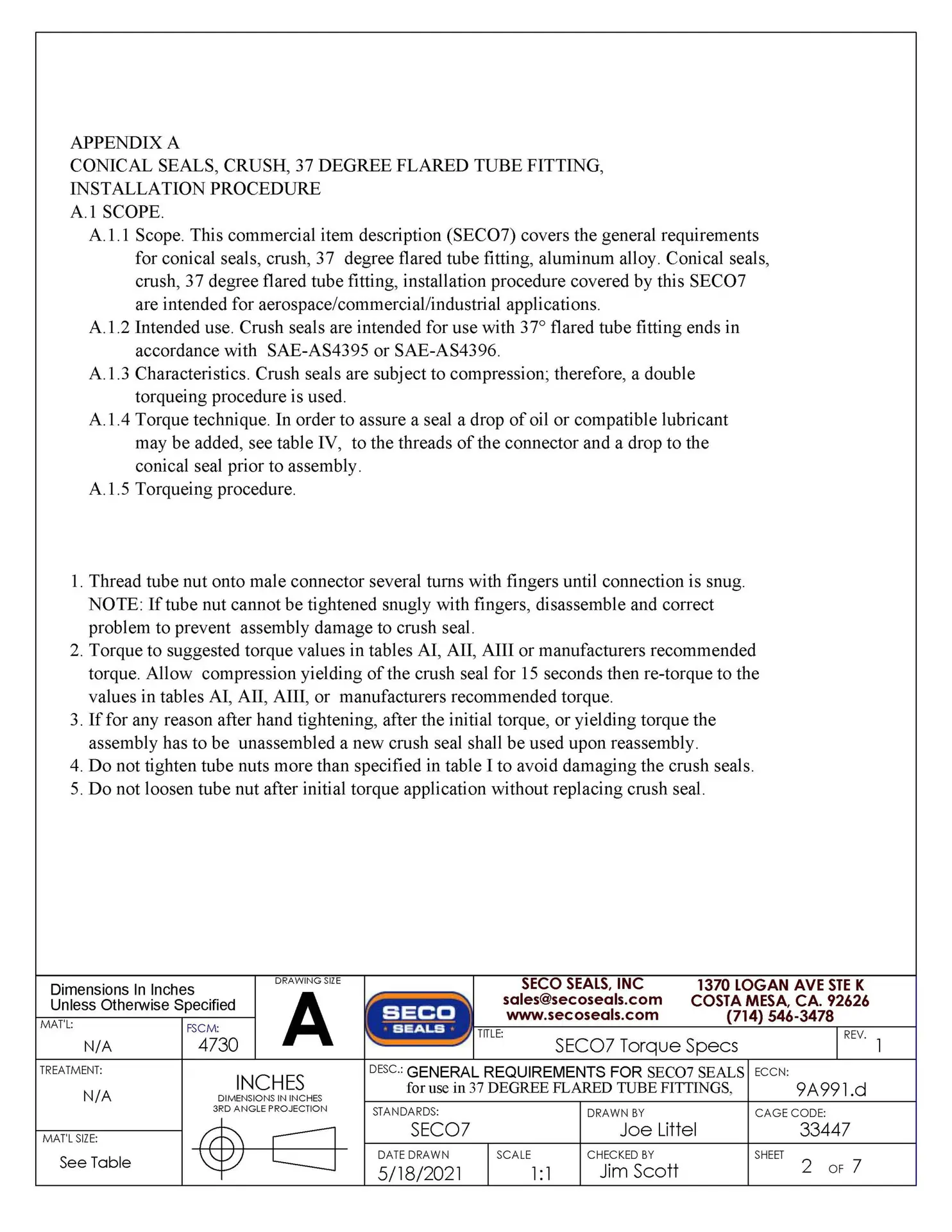

Page 2 of the “SECO7 Torque Specs” engineering document contains “APPENDIX A, INSTALLATION PROCEDURE“.

Page 3– SECO7 Torque Spec Overview

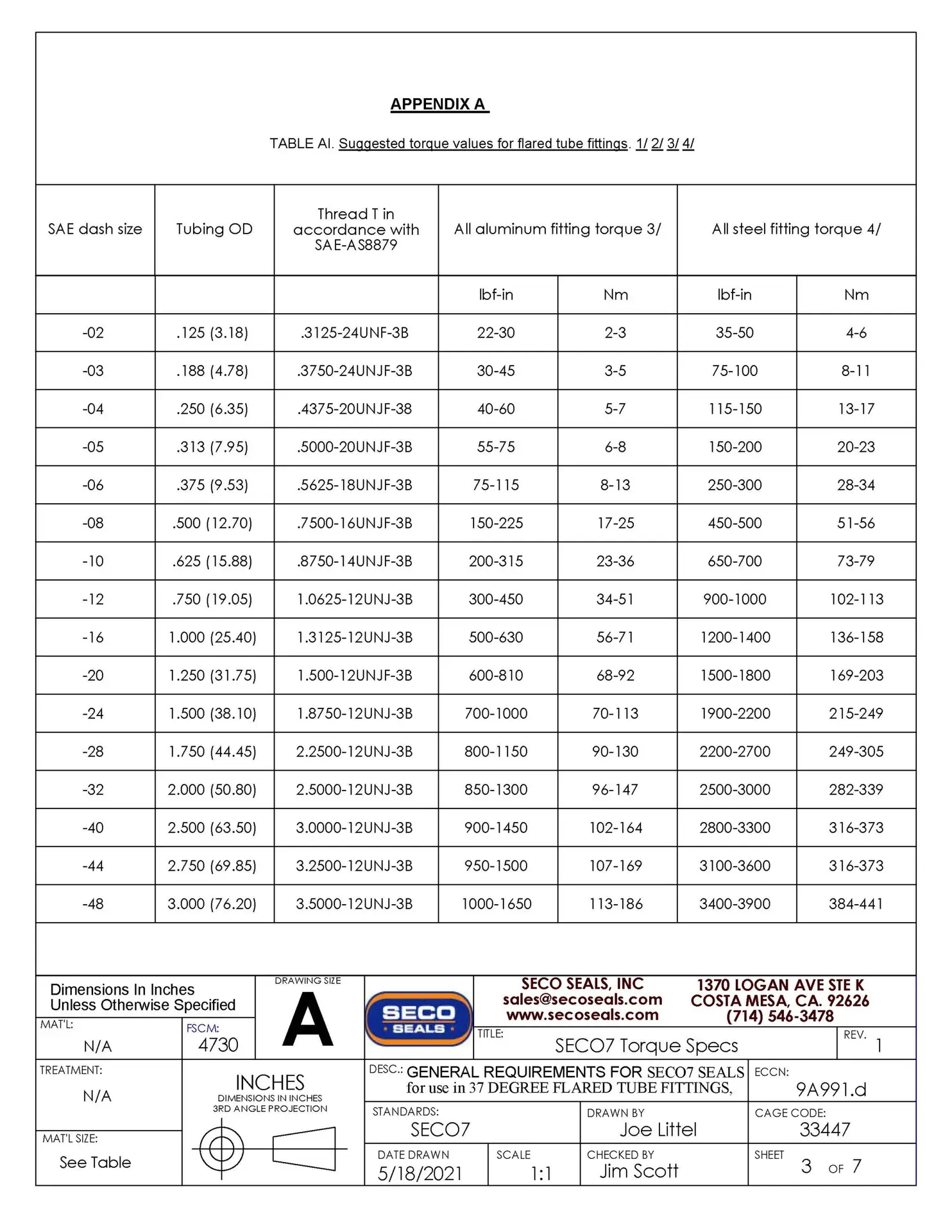

Page 3 of the “SECO7 Torque Specs” engineering document contains “APPENDIX A, TABLE AI, Suggested torque values for flared tube fittings“.

Page 4– SECO7 Torque Spec Overview

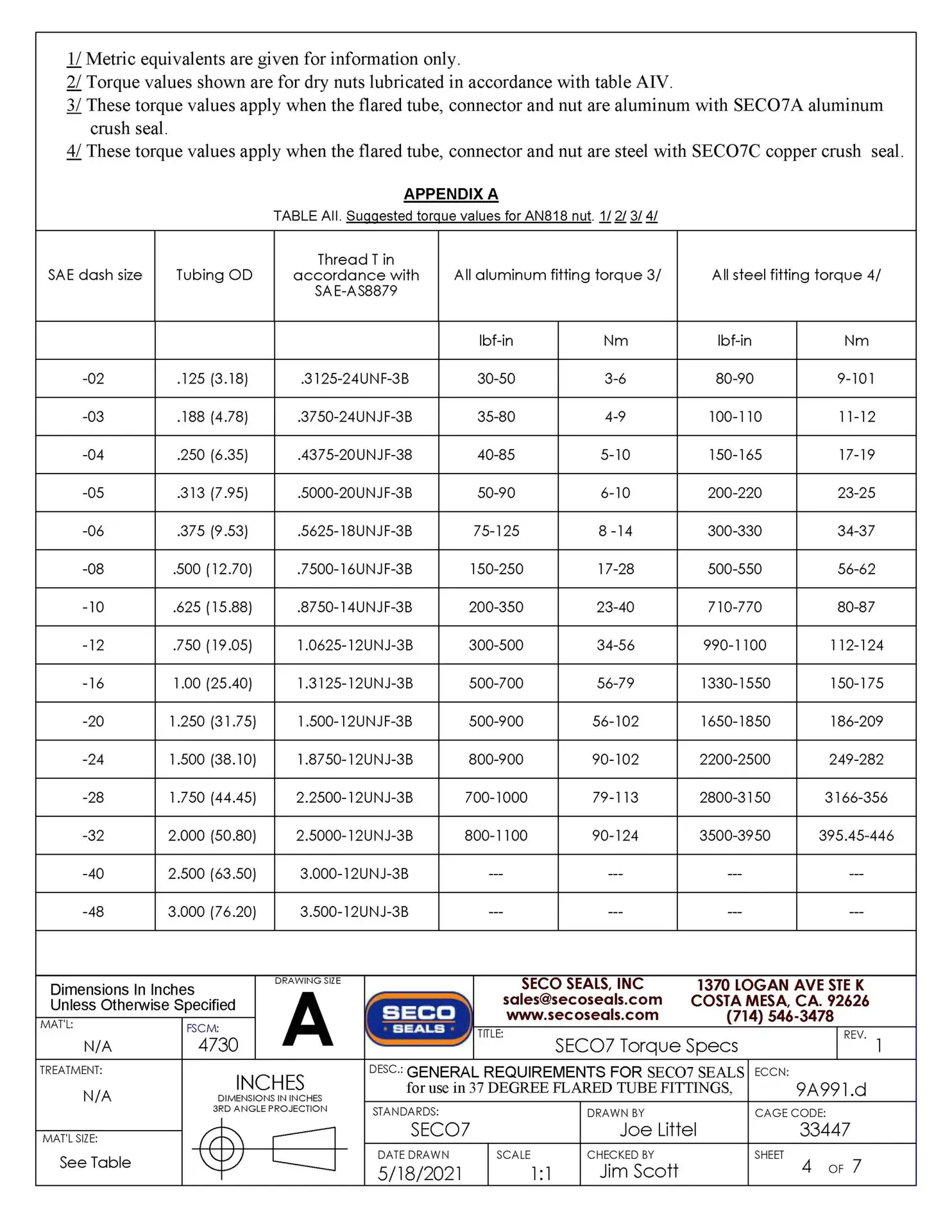

Page 4 of the “SECO7 Torque Specs” engineering document contains “APPENDIX A, TABLE AI, Suggested torque values for flared tube fittings – continued” and “TABLE AII, Suggested torque values for AN828 nut“.

Page 5– SECO7 Torque Spec Overview

Page 5 of the “SECO7 Torque Specs” engineering document contains “

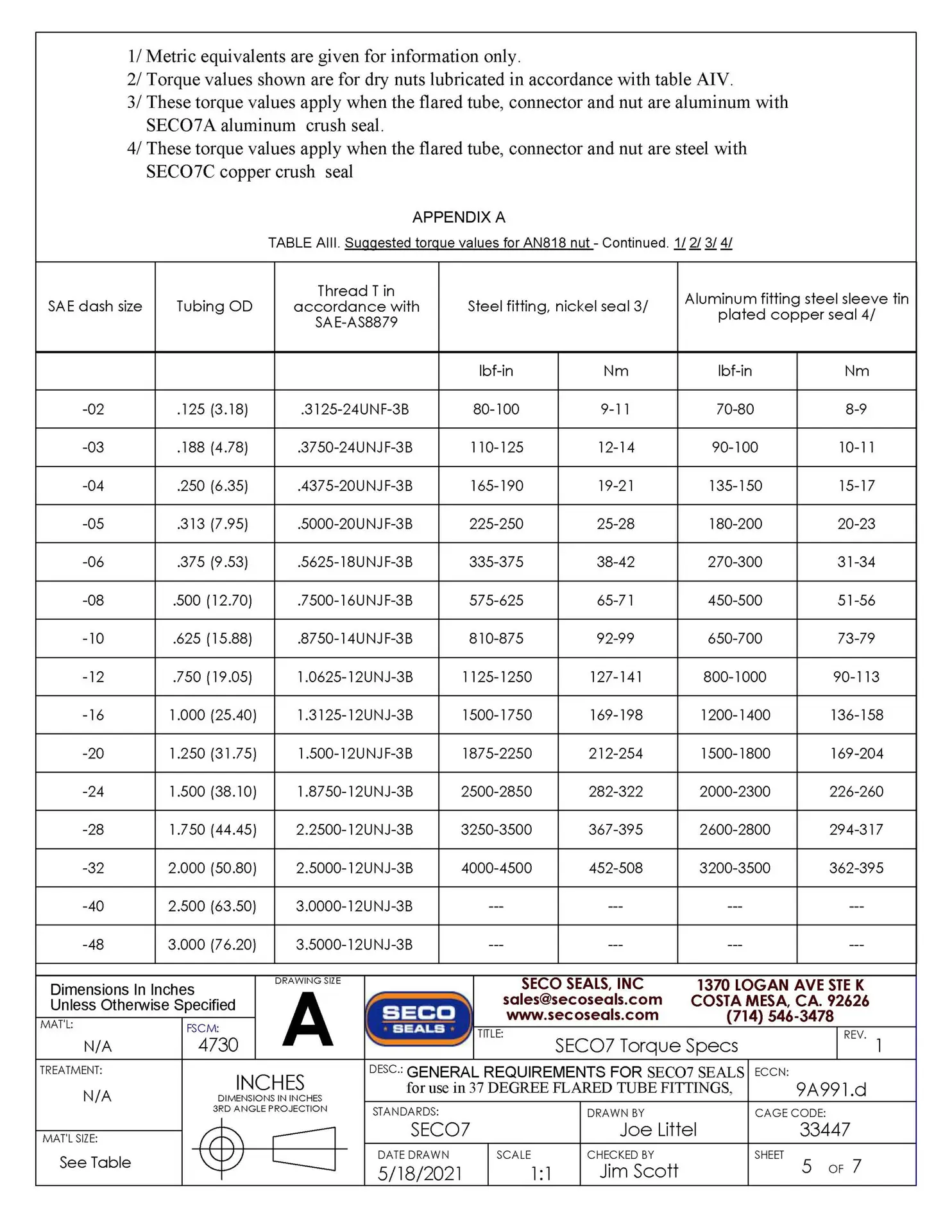

Page 4 of the “SECO7 Torque Specs” engineering document contains “APPENDIX A, TABLE AII, torque values for AN828 nut – continued” and “TABLE AIII, Suggested torque values for AN828 nut – continued

Page 6– SECO7 Torque Spec Overview

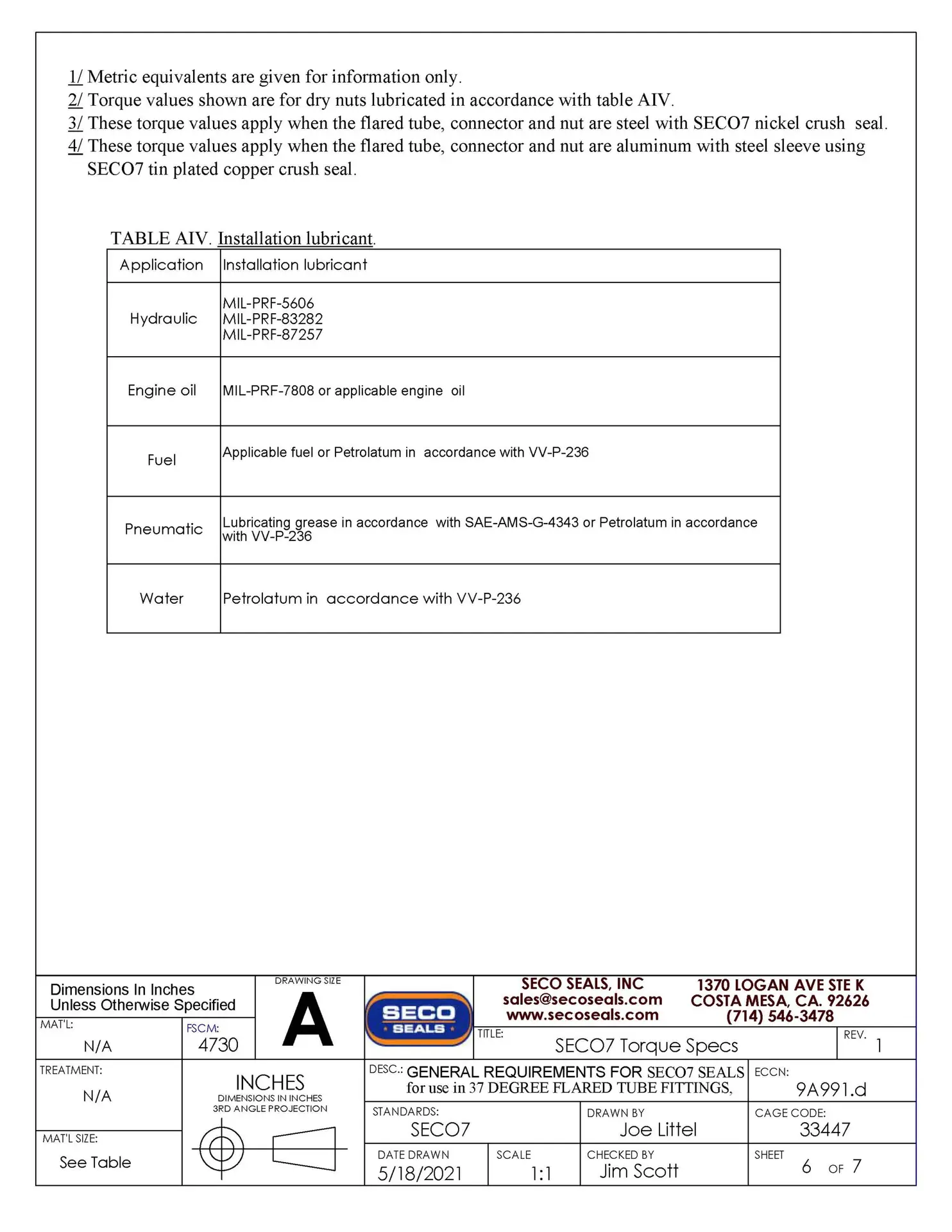

Page 6 of the “SECO7 Torque Specs” engineering document contains “APPENDIX A, TABLE AIII, Suggested torque values for AN818 nut – continued” and “TABLE AIV, Installation lubricant“.

Page 7– SECO7 Torque Spec Overview

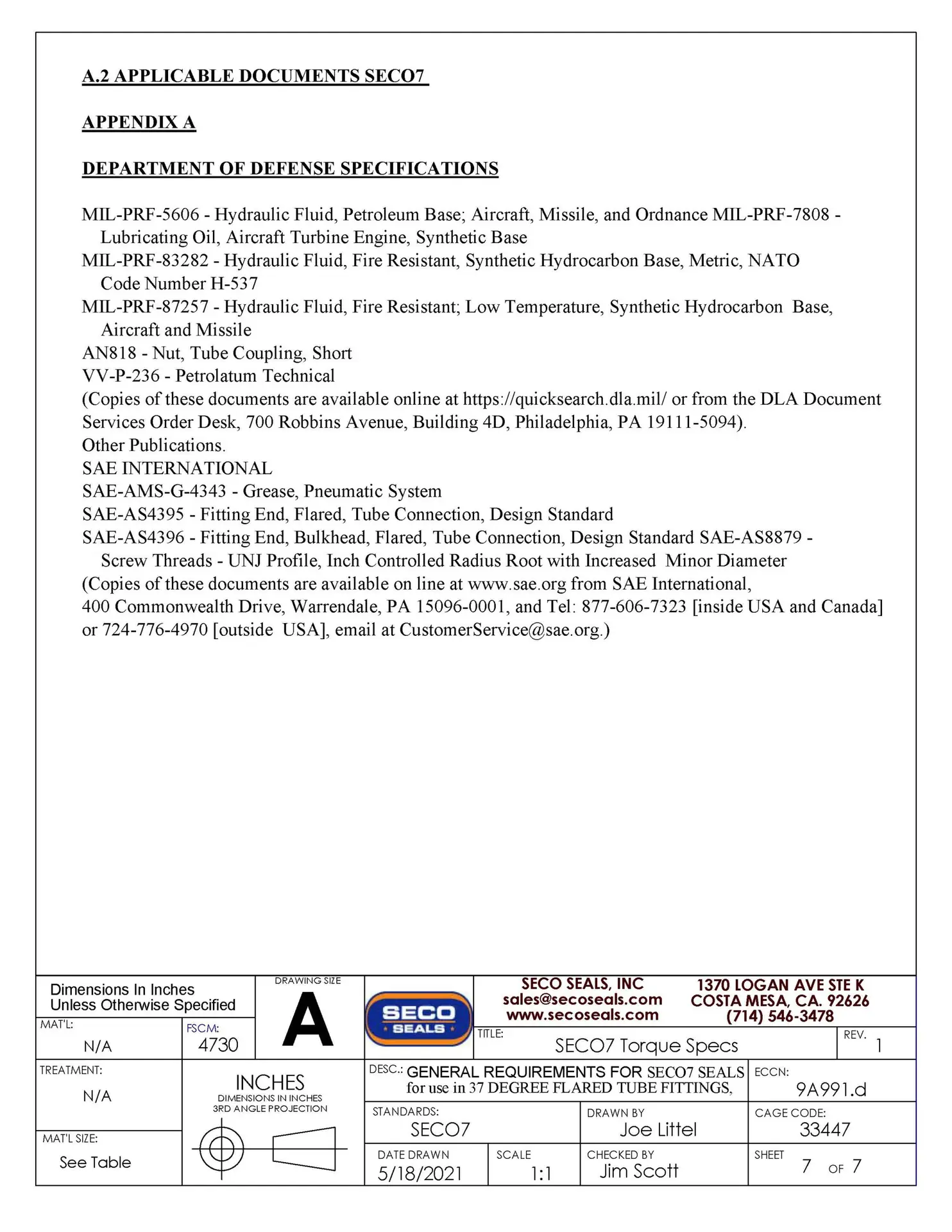

Page 7 of the “SECO7 Torque Specs” engineering document contains “APPENDIX A, APPLICABLE DOCUMENTS SECO7“, “DEPARTMENT OF DEFENSE SPECIFICATIONS” and “SAE INTERNATIONAL SPECIFICATIONS“.
